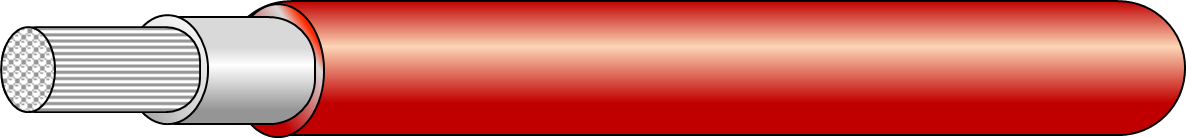

Power Flex with Tinned Copper Flexible Conductor to AS/NZS 5000.1
0.6/1kV Double Insulated X-HF-110 / HFS-110-TP Flame Retardant to IEC60332
For Fixed and Flexible Application
| CODE | Nominal Area mm2 | Number of Strands x Wire Ø mm | Average Insulation Thickness mm | Average Sheath Thickness mm | OFHC Max D.C. Resistance @20° C mΩ/m | Nominal O.D. mm | Bending Radius During Installation mm | Bending Radius Final Installation mm | Mass (kg/100mt) |
| LSFTD1.5 | 1.5 | 30/0.25 | 0.70 | 1.05 | 13.70 | 5.40 | 32 | 22 | 4.30 |
| LSFTD10 | 10 | 203/0.25 | 0.70 | 1.10 | 1.95 | 7.75 | 47 | 31 | 16.10 |
| LSFTD16 | 16 | 322/0.25 | 0.70 | 1.20 | 1.24 | 9.40 | 56 | 38 | 23.40 |
| LSFTD25 | 25 | 504/0.25 | 0.90 | 1.30 | 0.795 | 11.00 | 66 | 44 | 34.70 |
| LSFTD35 | 35 | 708/0.25 | 0.90 | 1.35 | 0.565 | 12.30 | 74 | 49 | 45.80 |
| LSFTD50 | 50 | 1008/0.25 | 1.00 | 1.40 | 0.393 | 14.10 | 85 | 56 | 63.70 |
| LSFTD70 | 70 | 1425/0.25 | 1.10 | 1.50 | 0.277 | 16.30 | 116 | 65 | 86.40 |
| LSFTD95 | 95 | 1178/0.32 | 1.10 | 1.55 | 0.210 | 18.10 | 109 | 72 | 115.50 |
| LSFTD120 | 120 | 1482/0.32 | 1.20 | 1.60 | 0.164 | 20.00 | 120 | 80 | 143.20 |
| LSFTD150 | 150 | 1862/0.32 | 1.40 | 1.65 | 0.132 | 22.30 | 134 | 89 | 178.30 |
| LSFTD185 | 185 | 1767/0.365 | 1.60 | 1.70 | 0.108 | 24.70 | 148 | 99 | 237.30 |
| LSFTD240 | 240 | 2280/0.365 | 1.70 | 1.85 | 0.0817 | 27.70 | 166 | 111 | 305.80 |
Features:
- Oxygen Free High Conductivity copper with excellent electric and thermal conductivity properties.
- Excellent hydrogen enbrittlement resistance, ( TPC ) Tough pitch copper becomes very brittle when it is heated at higher than 6000C under a reducing gas atmosphere including hydrogen. Since OFHC contains a very low oxygen content, it does not show any brittleness.
- Class 5 and 6 Flexible Conductor.
- Flexible Insulation compound.
- 110oC rated Power Cable.
- UV Stabilized Sheath.
Document Change Register
| 24.02.23 | Added Australian Made Logo, Conductor Resistance Corrected |
